Waste tyre can be converted into fuel oil through tyre pyrolysis process. The most commonly used synthetic polymer used in tire production is styrene-butadiene copolymer. When the pyrolysis temperature exceeds 350 degrees Celsius, the polymer decomposes into small fuel oil and hydrocarbon gase. LINGFINE waste tyre pyrolysis plants adopt the latest pyrolysis technology and process the waste tyres with high temperature in a oxygen-free condition. Through the waste tyre pyrolysis process, you can get fuel oil, carbon black, steel wire and combustible gas.

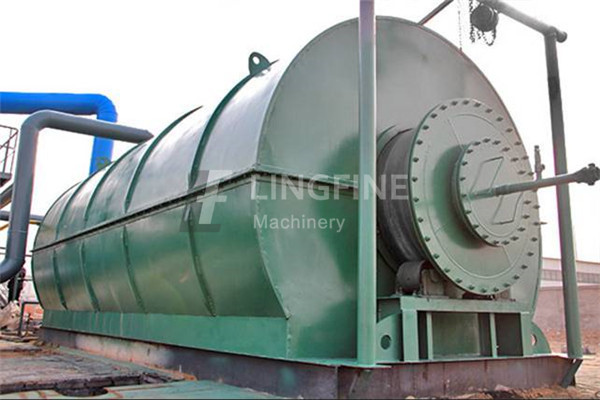

Waste tyre pyrolysis plant

Feed the waste tyres into the pyrolysis reactor and when heated to a certain temperature,waste tyres will be cracked into oil and gas. Then through 3 steps cooling system, oil gas will be liquefied and stored in tanks. Before the next pyrolysis process starts ,  the carbon black will be discharged  continuously.

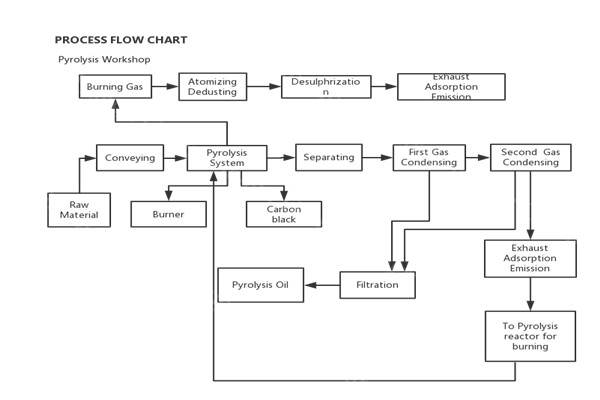

Waste tyre pyrolysis plant working process

The advantages of waste tyre pyrolysis plant

1. The complete set of waste tyre pyrolysis plant produces no smoke and smell with favorable effects of environmental protection.

2. The pressure release device operates through water circulation, which greatly improves the security of the system.

3. The release of pressure during the production dramatically increases the output within certain time and meanwhile improves the quality of oil.

4. The heating system adopts hot air heating technology, which improves the safety performance of production and heating efficiency.

5. High efficiency fuel gas heating system. When the heated gas reaches 150 during pyrolysis process, a large amount of gas will be generated.

6.Whole tyre feed, no need to break, which reduces cost.

Waste tyre pyrolysis plant installation site

The technical parameter of waste tyre pyrolysis plant

No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tyre	Waste tyre	Waste tyre
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared work for waste tyre pyrolysis plant

No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60? /month
7	Total power	19kw
8	Land area	35m*15m

The final products of waste tyre pyrolysis plant

Waste tyre pyrolysis plant products

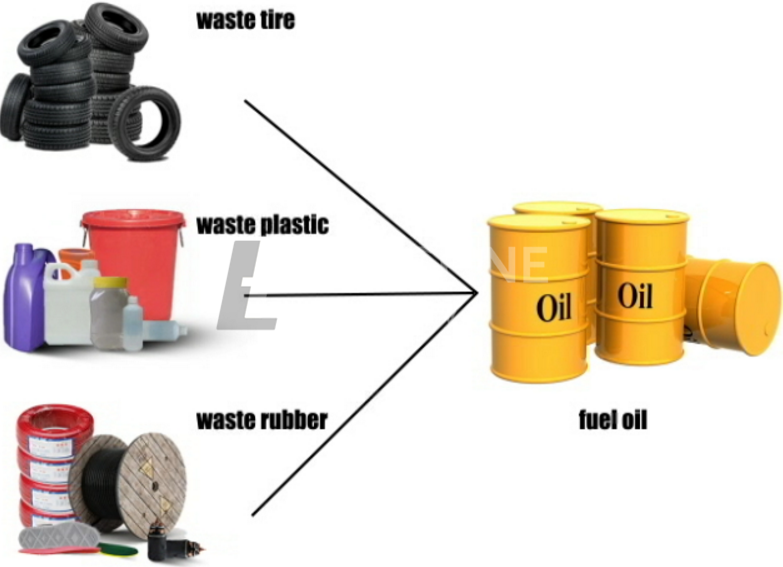

Other raw materials for waste tyre pyrolysis plant

Apart from waste tyres, waste plastics and waste tires can also be used as raw materials for waste tyre pyrolysis plant to produce fuel oil and carbon black.

Waste tyre pyrolysis plant raw materials

More details about the waste tyre pyrolysis plant, fell free to contact us.
