Waste Plastic Recycle to Fuel Oil Project

Item

Contents

Input-Raw Materials

Waste plastic, Municipal solid wastes, Garbage landfills, Medical wastes

End products

Fuel oil, carbon black, flammable gas

Model

Reactor size

Capacity

HY2200*5500

5 Ton/Batch

HY2200*7500

7 Ton/Batch

HY2600*6600

8 Ton/Batch

HY2800*6000

9 Ton/Batch

HY2800*6600

10 Ton/Batch

Reactor material

Q345R/Q245R/310S+Boiler plate/Stainless steel

Thickness

14mm/16mm/18mm

Weight

15T-35T

Power

Average 15KW/h

Space needed

300-400 square meters (Width:10m, Length:30m-40m)

Labor needed

3-4 workers

Density of oil

0.89g/cm3

Combustion value

44.30KJ/KG

Note:

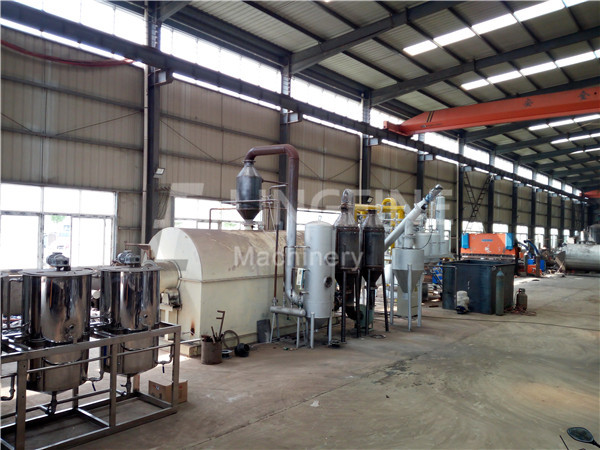

We supply customized mini plant: 10kg plant, 1ton plant for customer trial operation.

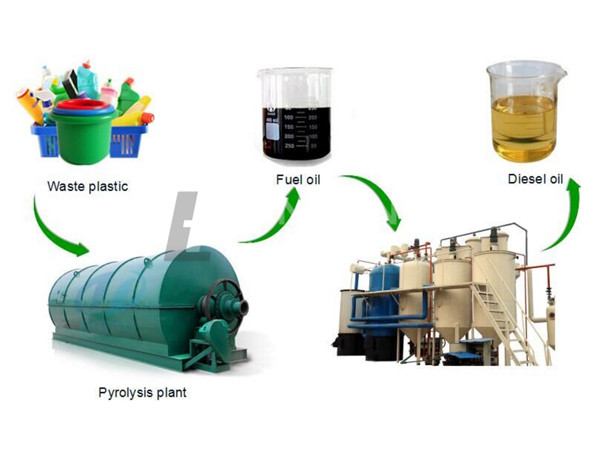

Fuel Oil (50%-75%)

1. Used as the heating material and sell it to cement factory, glass factory, ceramic factory, electric power factory, steel making factory, boiler factory, etc.
2. Used in heavy oil generator for electricity generation.
3. Deep process it into diesel oil with our distillation plant, color and smell removal system, the final oil can be used in trucks, tractor, etc.

Carbon Black (30%-35%)

Slag for construction.

Flammable Gas (8%-10%)

1. Recycled into furnace to heat reactor instead of coal/wood/oil/natural gas.
2. Storage the exceed gas to restart the next batch.

PP (microwave oven food box/yogurt bottles etc)

50%-75%

PE(plastic film /plastic wrap)

50%-75%

PS (smack-box/blister box)

50%-75%

ABS (engineering plastics)

40%

Leftovers of paper

Wet 15-20%, dry 60%

House garbage

35-50%

Plastic cable

80%

Plastic bag

50%

PVC (raincoat/building materials)

Not suitable

PET (water bottles/sodas beverage)

Not suitable
