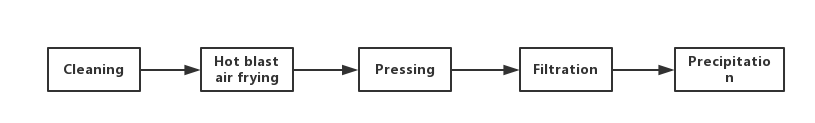

Production Process of sesame oil making plant

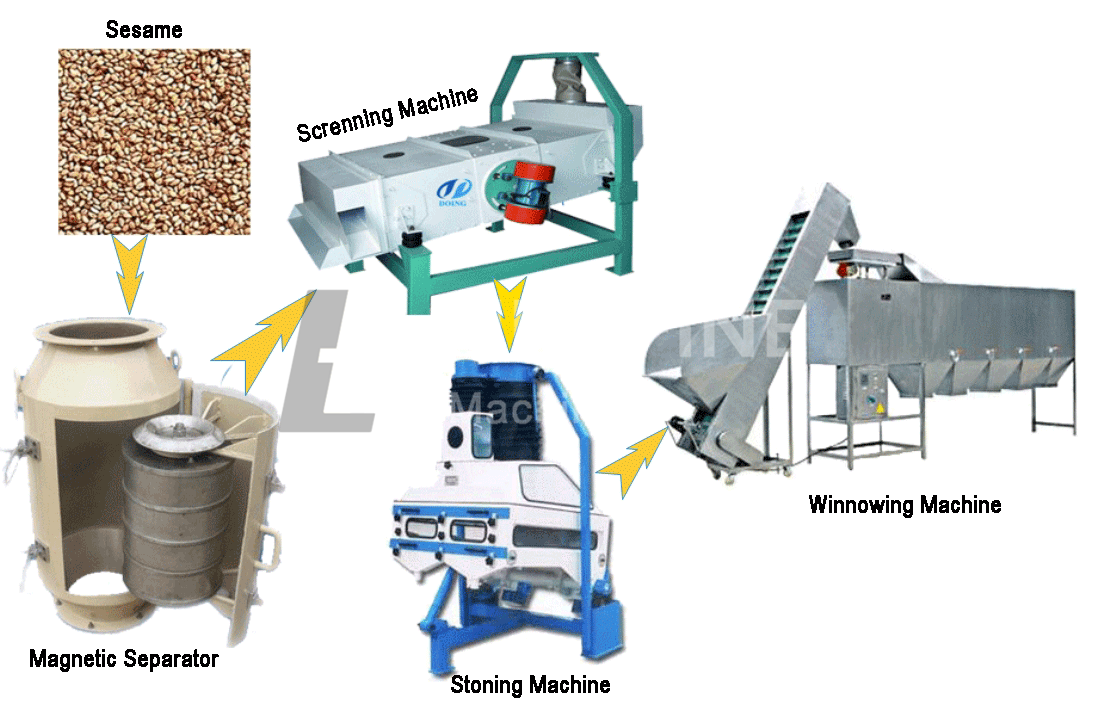

1. Cleaning

The equipment of this section includes screening machine unit, stoning machine, magnetic separator, winnowing machine and so on. All these equipment finish the process of raw materials feeding, screening, stone removing, magnetic separation, and the complete process of cleaning dust, air generated from this section. This section could reduce damage to the subsequent machines.

2. Hot blast air frying

This section is composed of fuel transport system, hot blast air stoves(oil furnace, coal stove), seeds frying machine, smoking system, hot blast air network, temperature detection system. The total seven equipment to fry the raw materials uniformly, ensure the protein denaturation and harden completely, separate the raw materials from the air and waste gas.

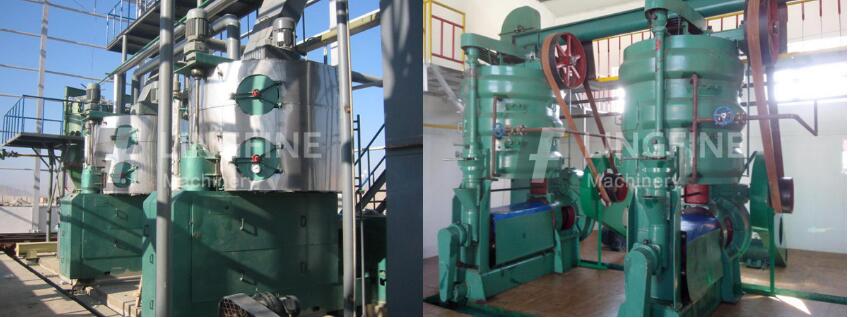

3. Pressing

This section contains warming conveyor,customized oil press,smoking installation,cake conveyor and so on. All these equipments achieve the whole process including oil extraction, cake transportation, and smoke removal.

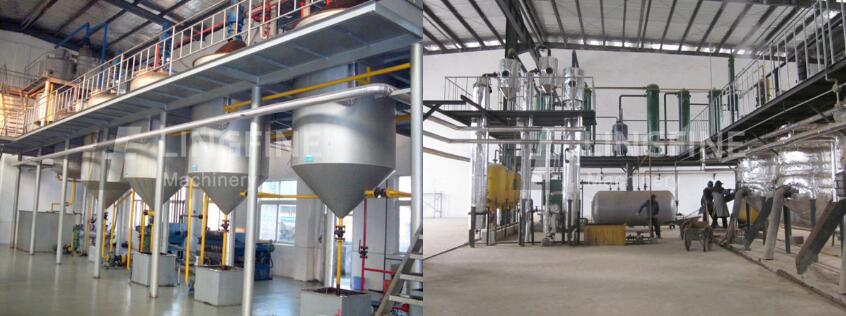

We can offer whole line of sesame oil extraction plant, pressing or solvent extraction plant for capacity from 10 to 6000TPD. If you want to know more about sesame oil extraction plant, please feel free to contact us.
