Introduction of continuous waste tire to oil pyrolysis plant
Continuous waste tire to oil pyrolysis plant
The continuous waste tire to oil pyrolysis plant industry laid the status of Lingfine waste tire to oil plant, continuous waste tire to oil pyrolysis plant highly praised by customers at home and abroad, the continuous waste tire to oil pyrolysis plant solves the problem of waste recycling ,such as scrap tires, waste plastics, waste rubber ,thecontinuous waste tire to oil pyrolysis plant can convert the waste recycling into fuel, continuous waste tire to oil pyrolysis plant already achieve and feeding in every second and minute ,automatic ejecting wastes residue,fuel product day and night ,safe operation ,save manpower,roduction efficiency,improve efficiency,durable , continuous waste tire to oil pyrolysis plant can live 3-5 years than oil refining plant.Continuous waste tire to oil pyrolysis plant in combination with adopt the advantage of the oil refining plant at home and abroad ,production a new type of continuous waste tire to oil pyrolysis plant .Final Lingfine machinery put the pefect continuous waste tire to oil pyrolysis plant appeared in front the public.
Continuous waste tire to oil pyrolysis plant working process
Continuous waste tire to oil pyrolysis plant continuous process waste tire to oil
1. Collect waste tires: All kinds of waste tires are available, from small car tires to big OTR tires.
2. Remove steel wire: Use a steel wire pulling machine to pull out the steel wire from waste tyres. The steel wire pulling machine is operated automatically, which only need one work for operation.
3. Shred tires: Use a specialized tire shredder to process big whole tyres into 3-5cm small pieces for easy feeding. The tire shredder is a single and fully automatic shredding system, which can be directly connected to the feeding system of the continuous pyrolysis plant, which no need any transfer process.
4. Continuous pyrolysis process: Shredded tires go into the continuous waste tyre pyrolysis plant, will firstly go through a mutiple pyrolysis reactor system to be pyrolyzed into oil gas. And oil gas will be cooling down to liquid oil through the cooling system. The residues (carbon black) will be pushed by continuous feeding tyres to the carbon black dischrge system for discharge.
Continuous waste tire to oil pyrolysis plant advantage
Continuous waste tire to oil pyrolysis plant picture show
1.Fully automatic with low labour costOur Continuous waste tire to oil pyrolysis plant is controled by PLC system with automatic feeding and discharge system, which only need 1-2 worker for operating the PLC or computer is ok.2.Fully pyrolysis for high oil outputOur Continuous waste tire to oil pyrolysis plant adopts mutiple reactor design which can make fully pyrolysis of waste tires, thus to get high oil output.3.Big capacityAlso due to continuous feeding and discharge system, and unique mutiple reactor design, our continuous waste tire to oil pyrolysis plant can process at least 10 tons waste tires per day, up to 100T/D.4.Internal rotating for conitnuous operationFor external rotating system, you have to change the sealing material every three days, thus cannot achieve the real sense of continuous process. But our continuous waste tyre pyrolysis reactor adopts internal rotating method, which no need to worry about the sealing of the external rotating system.5.Continuous working save time and energy6.Long working lifeDuring the continuous pyrolysis process, reactor heating is by indirect hot air heating, which will not damage reactor so much, thus to keep long usage life of the reactors. And since the hard steel wire already removed from waste tires before pyrolysis processs, thus no damage for the reactor.
Tchnical data of continuous waste tire to oil pyrolysis plant:
| No. | Item | Specifications | ||||||
| 1 | Model | LF-C-10 | LF-C-20 | LF-C-30 | LF-C-50 | LF-C-60 | LF-C-80 | LF-C-100 |
| 2 | Cpacity | 10T/D | 20T/D | 30T/D | 50T/D | 60T/D | 80T/D | 100T/D |
| 3 | Power | 35Kw | 50Kw | 65Kw | 80Kw | 90Kw | 105Kw | 120Kw |
| 4 | Working type | Continuous | ||||||
| 5 | Reactor deisgn | Mutiple reactors (The quantity and size depends on the raw material condition) | ||||||
| 6 | Rotating | Internal rotating | ||||||
| 7 | Cooling system | Recycled waster cooling | ||||||
| 8 | Reactor material | Q245R/Q345R boiler plate | ||||||
| 9 | Heating method | Indireact hot air heating | ||||||
| 10 | Heating fuel | Fuel oil/gas | ||||||

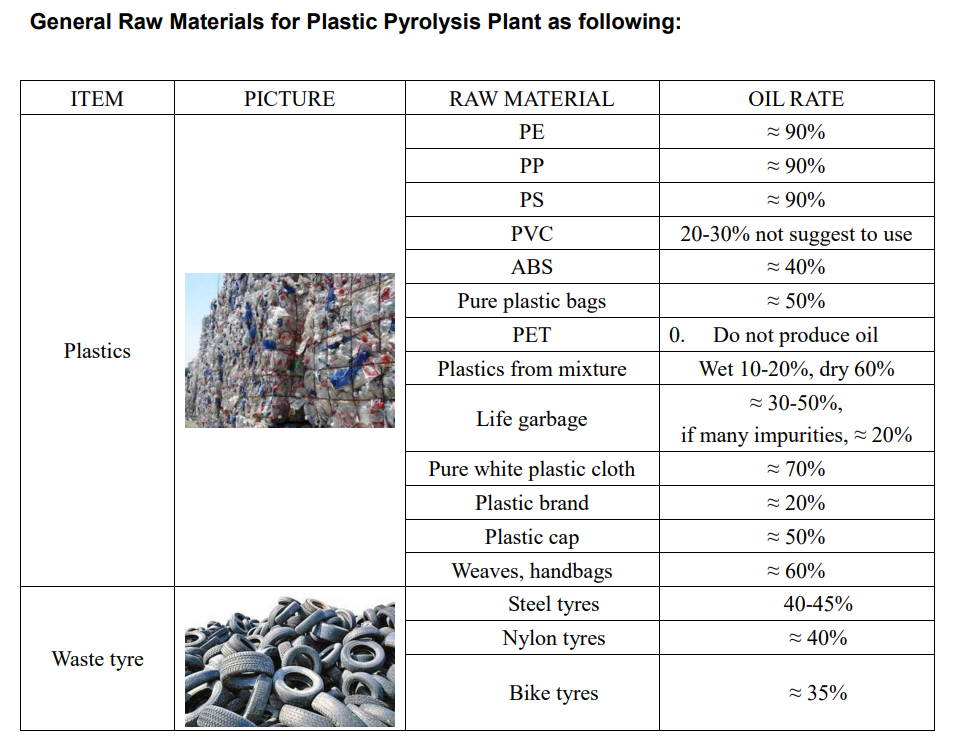

| 11 | Feedstock | Waste tire/plastic/rubber | ||||||
| 12 | Output | Fuel oil, carbon black | ||||||
Final products and its application:
Fuel oil
Fuel oil application
It can be used as fuel materials, Sold to power plant factory for electricity generating, steel factory, glass factory, cement factory, brick factory,ceramic factory, aluminum factory, boiler factory, central heating factory etc.
Carbon black
Carbon black application
Application A:Carbon black processed into N220, N330 carbon black used in Rubber, tires, conveyor belt, printing ink, etc industry.Application B: Carbon black processed into briquette for burning, like Air eater, coal heater, spray dry line…Application C: Carbon black deep processed into color master granule for plastics factory, used as base material, make it into pipes, cable jackets…
