Features of Rice Bran Oil Machine for Rice bran Extraction :

1. Adopt stainless steel fixed grid plate and increase the horizontal grid plates, which can prevent the strong miscella from flowing back to the blanking case, so as to ensure good extraction effect;

2. The rotocel extractor is driven by rack, with unique rotor of balanced design, low rotating speed, low power, smooth operation, no noise and quite low maintenance cost;

3. The feeding system can adjust the rotating speed of airlock and main engine according to the feeding quantity and maintain a certain material level, which is beneficial to the micro negative pressure inside the extractor and reduce the solvent leakage.

4. The advanced miscella circulation process is designed to reduce the fresh solvent inputs, reduce the residual oil in meal, improve the miscella concentration and save energy by reducing the evaporation capacity.

5. The high material layer of the extractor helps to form immersion extraction, reduce the meal quality in miscella, improve the quality of crude oil and reduce the evaporation system scaling.

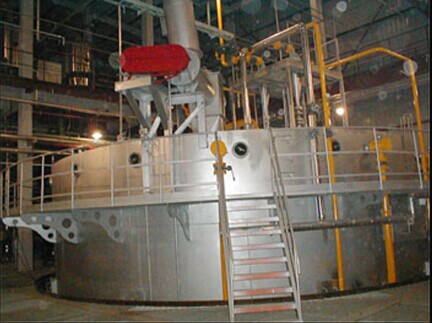

Rotocel extractor:

Frequency conversion can adjust the speed of cell or capacity;chain driven makes the operation stable and safety. Stainless steel fixed plates are used, thus extractor has large surplus capacity, it is helpful to expand capacity in the future. Meanwhile, high material level improves extraction efficiency. Extractor has 18 cell, cross grids is applied to prevent the mix oil flowing backwards into the final meal-dropping cell; Cycling solvent pumps have large flux, low head, good sealed, low cost, low noise, stableness.

Advantages:

●Extraction process adopts minus pressure

●Meal-fine stripping system can avoid its coming into the 1st stage evaporator and 2nd stage steam, so ensures the efficiency of thermo-conductivity and evaporating.

●Reasonable layout, convenient for operating and management.
